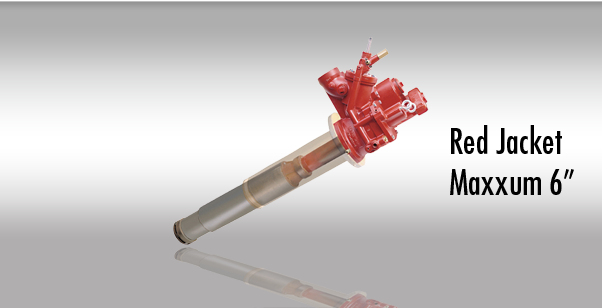

Red Jacket Maxxum 6"

Red Jacket Maxxum 6"

Reliability
The Red Jacket Maxxum 6" offers High level of reliability as it operates inside the tank under ideal working conditions, submersed in fluid which constantly cools and lubricates the motor

Eliminates Vapour Lock
Vapour locking has become a major problem with suction technology, however the maxxum 6" has been designed with global components to eliminate the likelihood of vapour lock.

Line Leak Detection
The Redjacket Maxxum 6" operates seamlessly with the Gilbarco Veeder-Root's ATG systems. Each time the dispensing -cycle ends, the lines are automatically tested for substantial leaks of over 11.4 litres per hour in for maximum environmental protection

Performance
Highest flow rate of any 6" fixed speed STP
Redesigned flow path reduces flow restrictions

Environmental Proctection
Mechanical or electronic line leak controlled by TLS monitoring system with automatic shutdown for maximum environmental protection.

Compatible with Gilbarco Veeder- Root PLLD which does not only eliminate leakages but also saves you money
Vapour recovery pump driving port

Transducer port for electronic leak detection.

Service and Installation benefits
Easy to service and install with safe electrical yoke disconnect
Easy termination of pump wiring in conduit box
Quick removal of extracta pump head
Quick accessibility of check valve


Models


3 & 5 HP models
50 & 60 HZ models
3 phases

Power

6" horse powers

Line pressure and Vent Port


1 and 2 available
¼" NPT

Line leak detection


Automatic tests for substantial leaks - 11.4 litres per hour

Vacuum siphon port


1 available
Vacuums generated up to 25 Hg

Length



Fixed length only

Adjustment Range

Static pressure range adjustable from 0 to 40 PSI (2.8 bar)
