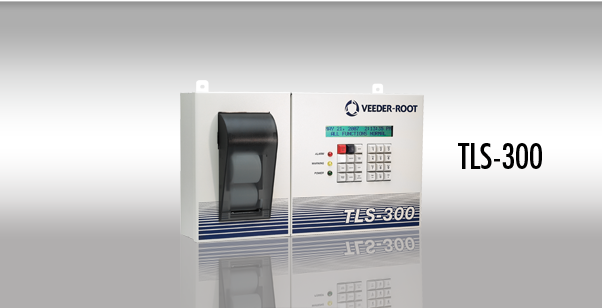

TLS-300 Automatic Tank Gauge

Automated inventory control eliminates need for time consuming manual dipping
Real time inventory data is available for all tanks on-demand, eliminating the need to manually dip tanks, ending uncertainties over stock readings, removing health and safety risks to staff and freeing up time for more profitable business activities.

Accurate inventory data available on-site and at remote management centres
Consistently accurate readings take the uncertainty out of inventory control, helping to identify and remove causes of variance before they become critical issues.

Remote access to inventory data across multiple sites allows the whole network to be managed efficiently.

Monitor additional leak detection sensors for improved environmental protection
Enhance environmental protection on higher risk sites by actively monitoring for fuel releases in tank and dispenser pumps, double wall tank or line interstices, to identify leaks quickly and minimise costs of clean up.

Test tanks for leaks to certified standards without tank shutdown
Continuous Statistical Leak Detection (CSLD) provides certified 0.76 litres per hour tank testing without tank shutdown, ideal for busier sites.

On suction systems the TLS 300 helps to detect line leaks.

Risk management is made possible whilst retaining uninterrupted 24-hour operation. Also helps to identify faulty under-pump check valves.

Continuous inventory monitoring
Know what's going on in your petrol, diesel, LPG and AdBlue tanks around the clock without the inconvenience and uncertainty of manual dipping.

Leak sensor monitoring
Detect hydrocarbon leaks early as they occur at critical locations around the forecourt and fuelling system.

Local connectivity
Interface to POS, BOS. PC to automate collection of tank data for additional system reporting. Connect to IFSF LON or LAN.

Remote connectivity
Remotely polled data facilitates control over the whole network for centralised reporting and optimal fuel replenishment process. Expanded connectivity options include GSM or TCP/IP for WAN applications.

Automatic alarms
Critical high & low tank level alarms help to prevent overfills and run-outs. Water detection alerts operators before costly dispensing occurs.

Delivery information
Maintains a historical record of fuel deliveries for each tank and allows push logistics to improve supply chain efficiency.

In-tank leak detection
Ensure your tanks are tight using testing methods third-party certified to 0.38 or 0.76 litres per hour precision, without additional cost, at any time.

Optional continuous testing avoids shutdown.

DIS compatible
Connect to optional Delivery Information System to display tank data to the delivery driver on the forecourt, allowing unattended fuel delivery at any time, even when the station is closed.

Relay outputs / inputs
Activate remote devices such as forecourt overfill alarm sounder or accept third-party system alarm inputs for centralised alarm management.
Probes interface Up to 8 magnetostrictive probes
Leak Detection
0.76 or 0.38 LPH
Continuous Statistical Leak Detection Software Enhanced module
Storage Temperature
-10°C to 45°C (15°F to 118°F)
Operating Temperature
0°C to 45°C (32°F to 118°F)
Tank Monitoring Up to 8 tanks
Sensor Interface
Up to 8 sensors
Model TLS-300 TLS-350
Compatible Fuels LPG
RS-232 Communication Interface
Visual and audible alarms
Visual and audible alarms capabilities
RS-232 Data Communication
5 communication devices
16 external inputs
32 output relays
