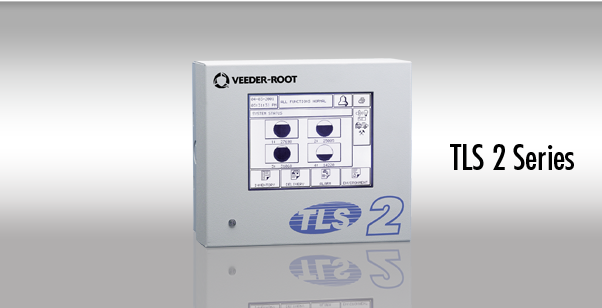

TLS 2 Series

Automated inventory control eliminates need for time consuming manual dipping
Real time inventory data is available for all tanks on-demand, eliminating the need to manually dip tanks, ending uncertainties over stock readings, removing health and safety risks to staff and freeing up time for more profitable business activities.

Accurate inventory data available on-site and at remote management centres
Consistently accurate readings take the uncertainty out of inventory control, helping to identify and remove causes of variance before they become critical issues. Remote access to inventory data across multiple sites allows the whole network to be managed efficiently.

Graphical touch screen display for easy operation
Simple, touch-screen menu navigation means that clearly presented key facts and figures are literally at your fingertips. Intuitive operation means site staff can quickly and easily use the system with the minimum of training.

Test tanks for leaks according to various certified standards
When a tank leak is suspected, the TLS 2 precision leak test feature can be used for immediate investigation, without additional costs. Tests can be run on-demand or scheduled to run during quiet times for additional peace of mind.

  • Continuous automated inventory monitoring for consistently accurate data
  • Easy to use, intuitive operation using ¼ VGA touch-screen
  • Local connectivity to POS, BOS, PC, local printer, DIS Driver Display and LAN for maximum data utilisation on site
  • Remote connectivity via modem or Ethernet for centralised management and efficient logistics
  • Automatic in-tank alarms provide critical warnings of high / low fuel levels and water presence
  • In-tank leak detection option for added environmental risk management
  • Delivery Information System (DIS) compatible for unattended fuel deliveries
  • Relay output to activate external overfill alarm sounder or other forecourt devices
  • Enhanced communication capabilities via web interface and email notification
  • AdBlue and LPG tank monitoring for integrated wet stock control
  • Density Measurement option to report density and mass of fuel with ‘density out of range’ alarms
Tank Monitoring Up to 6 probes
In-Tank Leak Detection
0.38 or 0.76 LPH (US EPA)
0.10 LPH (ICIM Spain)
Operating Temperature
0°C to 40°C
Power Requirements 230 / 115 VAC
Model TLS 2 TLS 2P
3 Communications Ports
> RS232 (POS, PC, External modem or Serial printer)
> RS232 / 422 / 485
> Parallel printer
5 Communications Ports
> RS232 (POS, PC, External modem or Serial printer)
> RS232 / 422 / 485
> RS232 Serial
> Ethernet TCP/IP
> USB for PC connection
Ethernet Connectivity No YES (Static or Dynamic IP Address)
Email Notification of
Alarms & Reports
No YES (via Ethernet)
TLS-RF Wireless Optional Optional
