Max1™ Hi-Flow Nozzle

Keep High-Volume Diesel Moving.

Heavy-duty construction, automatic shutoff, and operator-focused control for demanding truck stop, service station, and card-lock applications.

Download Max1 Spec Sheet

BUILT FOR DEMANDING DIESEL SITES

Heavy-Duty Performance Where Downtime is Not an Option

High-volume fueling environments demand equipment that can withstand constant use while keeping operation simple for the customer. Max1 combines rugged construction, automatic shutoff, and a convenient one-hand hold-open mechanism in a nozzle designed for unattended self-service and card-lock fueling.

Available in standard and pressure-sensitive configurations, Max1 gives site operators the flexibility to match nozzle performance and fuel-control features to the needs of their operation.

Engineered for Demanding Diesel Applications

Combing rugged construction, controlled operation, and flexible configurations for high-volume diesel fueling. From automatic shutoff protection to broad hose and thread compatibility, every detail is designed to support dependable performance at busy fueling sites.

Performance, Protection, and Site Flexibility

Certified Heavy-Duty Construction

UL/ULC 2586 listed and built with a rugged, heavy-duty design for demanding diesel applications. The cover and handguard materials are designed to help protect customers’ vehicles during fueling.

Controlled, Safe Fueling

Available attitude-device protection automatically shuts off flow if the spout is raised above horizontal or the nozzle falls from the vehicle. Pressure-sensitive configurations help prevent spills during prepay dispensing, while the dual-poppet design makes the nozzle easier to open under high inlet pressure.

Broad Site Compatibility

Every Max1 nozzle configuration is available as a Self Serve model. Max1 mates with standard hardwall and softwall 1-inch hoses and is available with NPT or BSPP threads to accommodate different fueling-system requirements.

Configurable for Your Operation

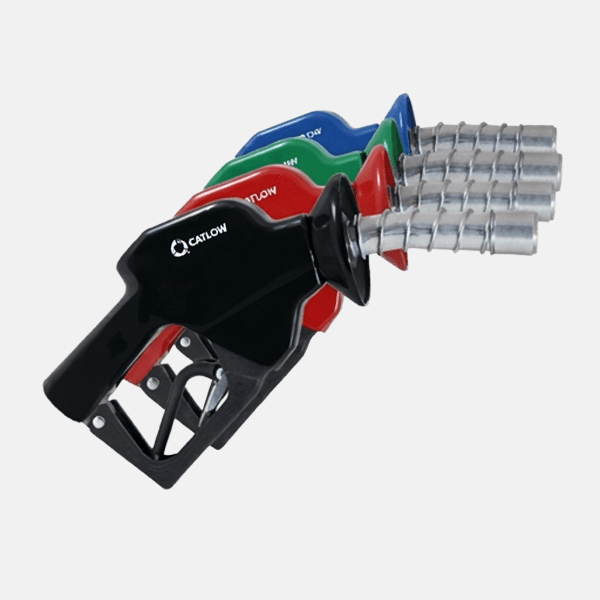

A longer spout with an Anchor Bushing is available upon request for improved durability. MAX 1 can also be configured in all major oil-company colors and customized with your organization’s logo.

Made for the Demands of High-Volume Fueling.

Heavy-Duty Construction

High-Pressure Control

Responsive Shutoff Protection

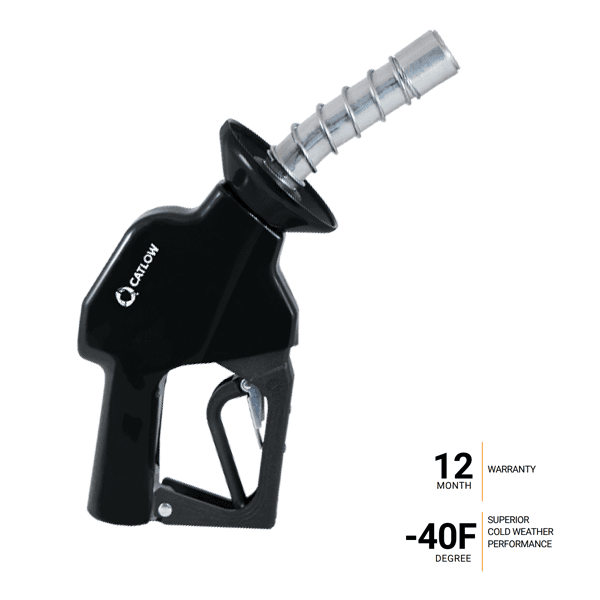

Cold-Weather Performance

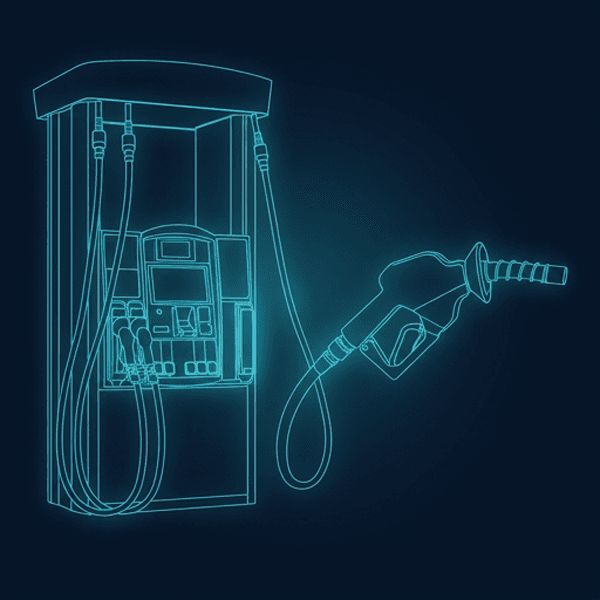

CONTROL AT THE POINT OF FUELING

Designed to Stop Flow When Conditions Change

Max1 brings automatic protection to busy diesel fueling environments. Available configurations add pressure-sensitive operation and attitude-device protection, giving operators greater control while helping reduce the potential for spills.

Automatic Shutoff
Provides automatic fuel-flow protection during dispensing.
No Pressure, No Flow
Available pressure-sensitive models prevent dispensing until the system is properly pressurized.
Attitude-Device Protection
Available configurations automatically stop flow if the spout rises above horizontal or falls from the vehicle.
Prepay Spill Protection
The pressure-sensitive design helps prevent spills in prepay fueling applications.

BUILT FOR DAILY DEMAND

Engineered for Long-Lasting Durability

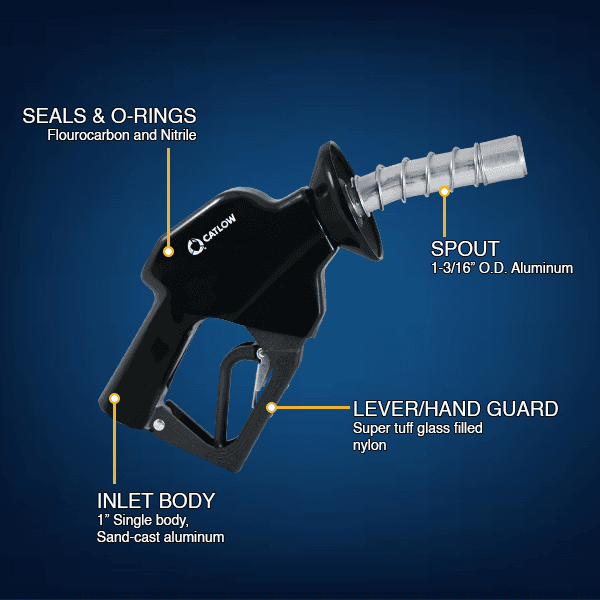

Constructed for repeated use in demanding diesel applications. Its sand-cast aluminum body, aluminum spout, fuel-compatible seals, and reinforced lever and handguard materials provide a durable foundation for high-volume operation.

One-inch single-body, sand-cast aluminum construction
1-3/16 inch outside-diameter aluminum spout
Fluorocarbon and nitrile seals and O-rings
Glass-filled nylon lever and handguard
Available anchor bushing for greater spout durability
Vehicle-conscious cover and handguard materials

For applications that need additional spout reinforcement, a longer spout with an anchor bushing is also available.

CHOOSE WHAT YOUR SITE REQUIRES

Find the Right Configuration

Available in multiple configurations to support different hold-open, low-flow, spout-protection, and automatic shutoff requirements.

Model	Configuration
NM1P-AR-AD	Two-step hold-open device, attitude device, anchor bushing, full scuff guard, and splash shield
NM1P-0-03-0	No hold-open device, trickle-flow poppet, attitude device, anchor bushing, and full scuff guard
NM1P-0-01-3	Three-step hold-open device, trickle-flow poppet, attitude device, and full scuff guard
NM1P-0-02-3	Three-step hold-open device, trickle-flow poppet, anchor bushing, and full scuff guard

Find the Right MAX 1 Nozzle for Your Site.

Contact Gilbarco about your diesel application, dispenser setup, and operating requirements
