ISBA In-Line Swivel with Reconnectable Breakaway

Two Critical Functions. One Streamlined Connection.

Combining hose control and reconnectable drive-off protection in one durable assembly for a simplified dispenser setup.

A SIMPLER HARDWARE SOLUTION

Built to Move Freely. Engineered to Separate Reliably.

Every connection between the dispenser and nozzle has a job to do. The ISBA simplifies that connection by bringing smooth swivel movement and reconnectable breakaway protection together in one compact assembly.

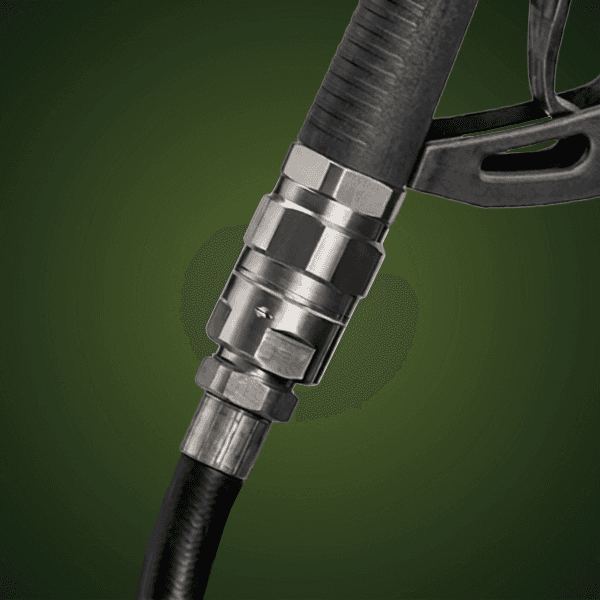

During everyday fueling, 360-degree rotation helps customers position the nozzle while reducing hose twisting and strain. If a drive-off occurs, the breakaway is designed to separate cleanly at a 30-degree angle, while dual poppets close both sides of the fuel path to help limit leakage. The result is a more controlled fueling connection for customers, equipment, and site operations.

INTEGRATED SWIVEL + BREAKAWAY

The ISBA combines durable internal construction, broad application compatibility, and reconnectable drive-off protection in one streamlined assembly.

Built for Reliable Performance

Performance

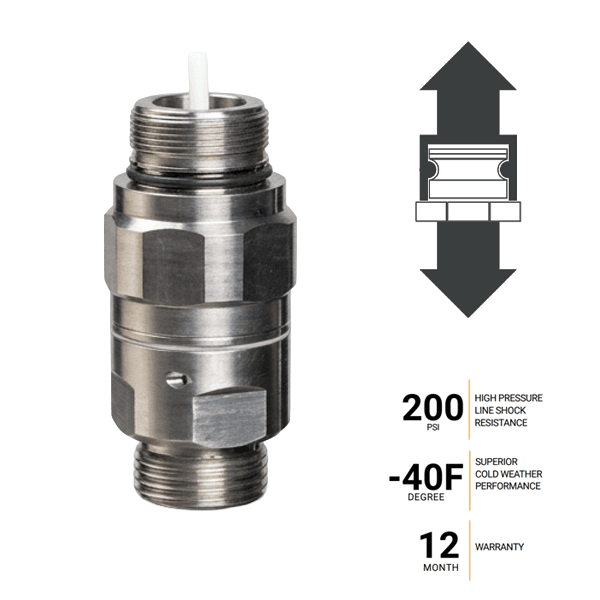

The ISBA integrates a 360-degree in-line swivel with a reconnectable breakaway engineered to separate at a 30-degree angle. It provides minimal flow restriction, resists line shock up to 200 PSI, operates from -40°F to 125°F (-40°C to 52°C), and includes a 12-month warranty.

Internal Construction

A self-lubricating nylon swivel bearing, stainless-steel poppet guides, dual cone-shaped poppets, and weather-resistant O-ring seals support dependable performance. During separation, the dual-sided closure helps limit fuel leakage from both the hose and nozzle sides.

Connections and Compatibility

The ISBA family is available with M34, NPT, and BSPP connections in 3/4-inch and 1-inch configurations. Model-specific options support gasoline, diesel, ethanol blends, biodiesel blends, and DEF applications.

Approvals and Installation

UL-listed and ATEX-approved configurations are available, with certifications and compatible fluids varying by model and market. By combining the swivel and breakaway into one assembly, the ISBA eliminates the need for a separate whip hose and reduces the number of components required for installation.

Performance at Every Connection

Full 360° Rotation

Drive-Off Protection

Dual-Sided Leak Control

Multi-Fuel Flexibility

ENGINEERED FROM THE INSIDE OUT

A Simple Two-In-One Solution

Designed to keep moving smoothly during everyday use and respond reliably when separation occurs. Durable internal components support consistent rotation, precise poppet movement, and protection across a wide range of fuels, fluids, temperatures, and site conditions.

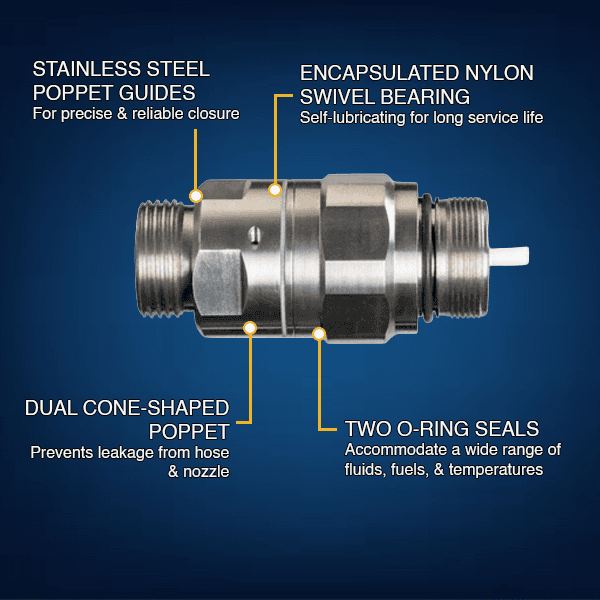

Encapsulated nylon swivel bearing: Self-lubricating construction supports smooth rotation and long service life.
Stainless-steel poppet guides: Help provide precise and reliable closure.
Dual cone-shaped poppets: Close both sides of the connection to help limit fuel release after separation.
Two O-ring seals: Add leak protection and accommodate a broad range of compatible fluids and temperatures.

ONE CONNECTION. MULTIPLE APPLICATIONS.

Choose the ISBA Configuration for Your Site

Includes connection sizes and fluid-compatible configurations for conventional retail fueling, diesel applications, Ergo nozzle installations, and DEF dispensing.

Model	Connection	Compatible application
ISBA-100N	1-inch male to 1-inch female NPT	Diesel, including biodiesel blends up to B20
ISBA-E25	M34 male to 3/4-inch female NPT	Ergo gasoline applications with ethanol blends up to E25; diesel with biodiesel blends up to B20
ISBA-75N	3/4-inch male to 3/4-inch female NPT	Gasoline with ethanol blends up to E25; diesel with biodiesel blends up to B20
ISBA-DEF	M34 male to 1-inch male BSPP	Diesel exhaust fluid

Ready to Simplify Your Hanging Hardware Setup?

Contact Gilbarco to identify the appropriate configuration for your site.
