SMOOTHER HANDLING. LONGER HOSE LIFE.
Take the Twist Out of the Fueling Experience
Every turn of the nozzle can place additional twisting force on the fueling hose. The ILS In-Line Swivel provides full 360-degree rotation, allowing the nozzle to move more naturally with the customer instead of working against the hose.
By helping reduce kinking and twisting, this swivel supports easier nozzle positioning and longer hose service life. Its compact in-line design delivers minimal flow restriction and can be installed at either the nozzle or dispenser without changing the existing hose length.
Better Movement by Design
Full-Circle Nozzle Control
Provides 360-degree rotation so customers can position the nozzle with less resistance from the hose.
Reduced Hose Kinking
Helps relieve twisting forces that can place unnecessary strain on the hose during repeated use.
High-Flow Ready
Engineered for minimal flow restriction across standard, diesel, and high-flow bulk fueling applications.
Proven Durability
Features a self-lubricating swivel bearing tested for reliable long-term movement.
ENGINEERED FOR EVERY TURN
Built for Smooth Movement
Multiple sizes, thread options, and UL-listed fuel configurations support standard, diesel, ethanol-blend, and high-flow fueling applications.
Featuring:
- 360-degree nozzle rotation

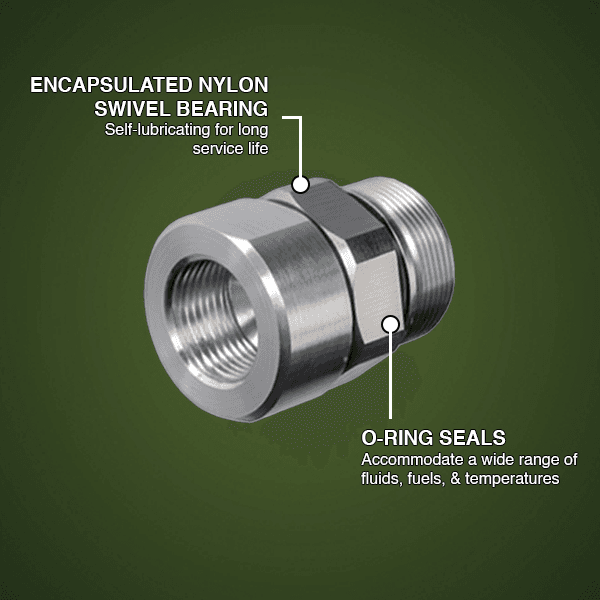

- Encapsulated, self-lubricating nylon swivel bearing
- Two internal O-ring seals
- Minimal restriction on fuel flow

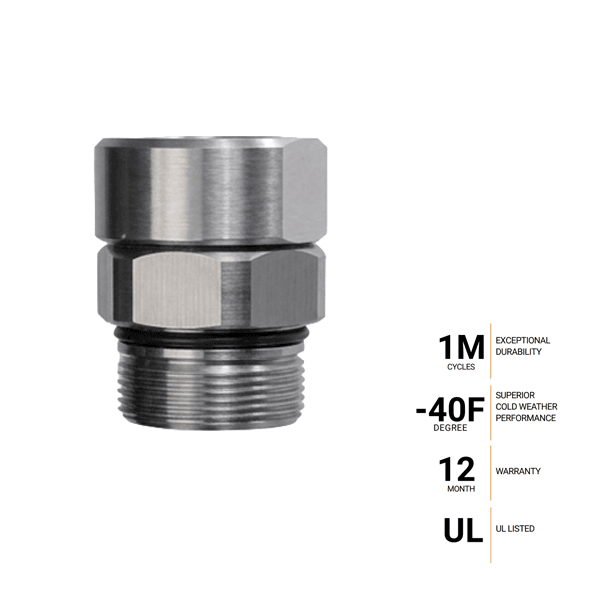

- Tested to more than 1,000,000 cycles*
- Temperature range from –40°F to 125°F

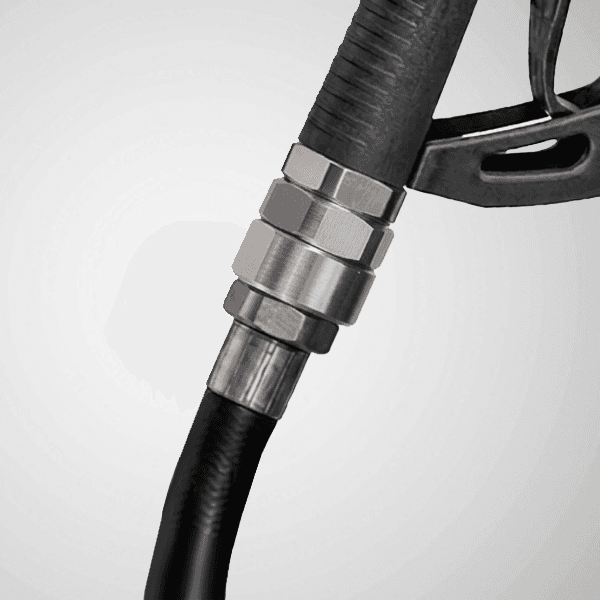

- Installs at the nozzle or dispenser
- Available in 3/4-inch and 1-inch configurations
- NPT, M34, and British Parallel thread options
- UL-listed configurations for gasoline, diesel, E25, E85, and biodiesel blends up to B20
- 12-month warranty
*Based on internal Catlow testing
FIND THE RIGHT CONFIGURATION
Fits the Way Your Fueling Works
The in-line design integrates with standard, diesel, and high-flow bulk fueling hoses while maintaining the existing hose length.
Multiple connection sizes and thread configurations make it easier to match the swivel to the equipment, fuel type, and operating requirements of the site.
| Model | Connection | Application |
|---|---|---|
| ILS-N7575 | 3/4-inch NPT to 3/4-inch NPT | Standard fuels |
| ILS-N100100 | 1-inch NPT to 1-inch NPT | Standard fuels |
| ILS-N7575F | 3/4-inch male × 3/4-inch female | E85 |
| ILS-M75F | M34 × 3/4-inch NPT | E85 |
| ILS-M75 | 3/4-inch NPT to 3/4-inch NPT | E85 |
