C86NT 3/4″ In-Line Breakaway

Drive-Off Protection That Closes the Line

Compact, lightweight, and designed for minimal flow restriction, the C86NT adds dependable drive-off protection between the whip hose and primary hose.

Download Brochure
PROTECTION THAT STAYS OUT OF THE WAY

Ready for the Unexpected. Unnoticed the Rest of the Time.

A breakaway has to respond when it matters without interfering with everyday fueling. The C86NT combines a small, lightweight profile with minimal flow restriction, helping fuel move efficiently during normal operation.

During a drive-off, the breakaway is designed to separate at a maximum force of 350 pounds. Dual internal poppets then close the fuel path on both sides, helping contain fuel in the primary and whip hoses while reducing the potential for cleanup, equipment damage, and environmental impact.

Straightforward Post-Drive-Off Response

The C86NT is a single-use breakaway built around a clear response following separation. Instead of field reconnection, the separated unit is replaced before the fueling position returns to operation. This straightforward approach helps site teams maintain a consistent drive-off response and restore the fueling position with a new breakaway.

SEPARATE. SEAL. REPLACE.
Controlled Drive-Off Protection

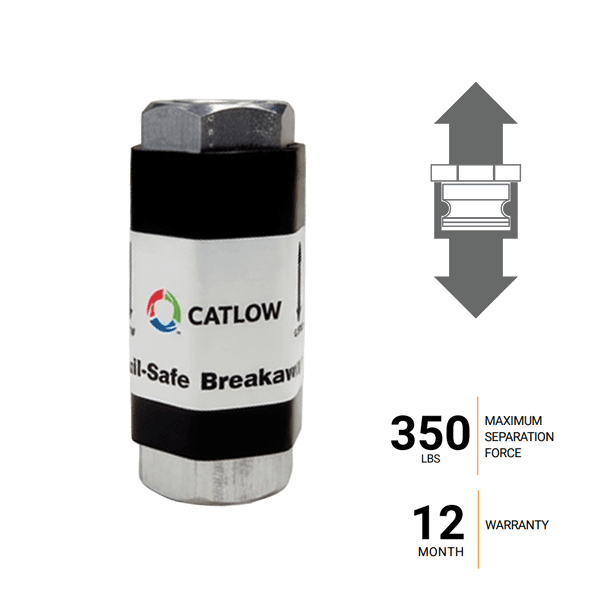

The single-use C86NT is designed with a maximum separation force of 350 pounds. If separation occurs, internal dual poppets close both sides of the breakaway to help contain fuel within the hoses.

Lightweight, Durable Construction

A compact aluminum body provides a strong foundation without adding unnecessary bulk. The assembly includes a durable nylon protective cover and nitrile and fluorocarbon seals.

Flexible Hose Compatibility

The 3/4-inch C86NT installs between the whip hose and primary hose and mates with standard 3/4-inch and 5/8-inch hoses. Verify fuel, hose, and dispenser compatibility before installation.

Common Fuel Applications

The C86NT is UL/ULC listed for gasoline, diesel, and ethanol blends containing up to 10% ethanol. It meets NFPA 30A codes, provides minimal flow restriction, and includes a 12-month warranty.

Protection That Responds When It Matters Most

Controlled Separation

Designed with a maximum separation force of 350 pounds to help protect the dispenser and hanging hardware during a drive-off.

Dual-Sided Closure

Internal dual poppets close both sides of the breakaway after separation, helping keep fuel contained within the hoses.

Minimal Flow Restriction

The compact in-line design helps maintain efficient fuel flow without adding unnecessary restriction to the hanging-hardware system.

Protective Exterior

A durable nylon cover helps minimize contact damage to both the breakaway and the customer’s vehicle during a drive-off.

PROTECTION FROM THE INSIDE OUT

Two Poppets. Both Sides Protected.

When the C86NT separates, protection happens at both ends. Its internal dual-poppet design closes the fuel path toward the dispenser and toward the nozzle, helping contain the fuel already present within each hose.

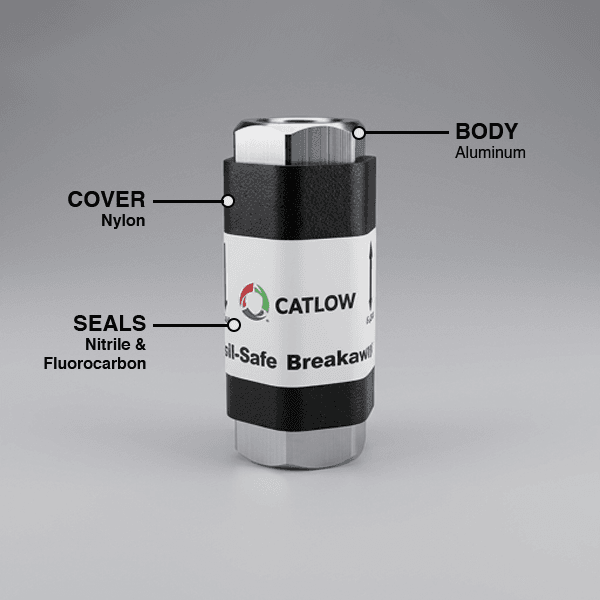

An aluminum body provides a strong internal foundation, while nitrile and fluorocarbon seals support reliable performance with approved fuels. A durable nylon cover adds an exterior layer of protection for the assembly and nearby vehicle surfaces.

  • Dual internal poppets
  • Aluminum body construction
  • Nitrile and fluorocarbon seals
  • Durable nylon protective cover
MADE FOR STANDARD FUELING CONFIGURATIONS

A Compact Fit

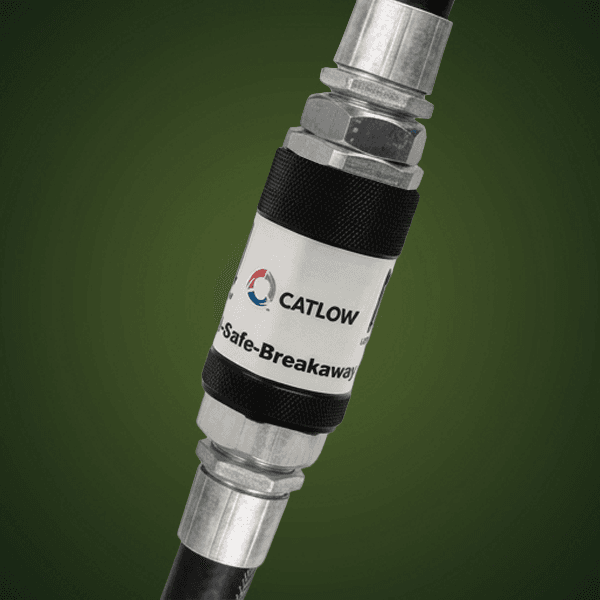

Designed for installation between the whip hose and primary hose, the C86NT mates with standard 3/4-inch and 5/8-inch hoses. Its small, lightweight construction makes it a practical drive-off protection solution for common retail and commercial fueling configurations.

UL/ULC listed for gasoline, diesel, and ethanol blends containing up to 10% ethanol and is designed to meet NFPA 30A requirements.

Find the Right Breakaway for Your Site

Connect with Gilbarco to discuss your fuel application, hose configuration, and drive-off protection requirements.
