C100N 1" In-Line Breakaway

DRIVE-OFF PROTECTION FOR HIGH-VOLUME FUELING

Built for truck stops and high-volume fueling applications, while providing heavy-duty drive-off protection in a true one-inch design.

HANDLING THE DEMANDS OF HIGH-VOLUME SITES

Heavy-Duty Protection, Engineered for the One-Inch Hose

Drive-off incidents can turn a routine fueling stop into equipment damage, lost fuel, and unexpected downtime. The C100N adds a controlled separation point to the hose assembly, helping isolate the dispenser from excessive pull forces.

Designed specifically for one-inch fueling systems, the C100N supports high-capacity dispensing with minimal flow restriction. If separation occurs, internal dual poppets close the fuel path on both sides of the breakaway, helping keep fuel contained within the hoses and limiting the impact on the fueling position.

High-Volume Performance. Dependable Drive-Off Protection.

This breakaway combines a true one-inch flow path with controlled separation and dual-sided fuel containment. UL/ULC listed for diesel, gasoline, and ethanol blends up to E10, it provides dependable drive-off protection for truck stops, fleet facilities, and other high-volume fueling sites.

Protection Engineered Into Every Connection

True One-Inch Performance

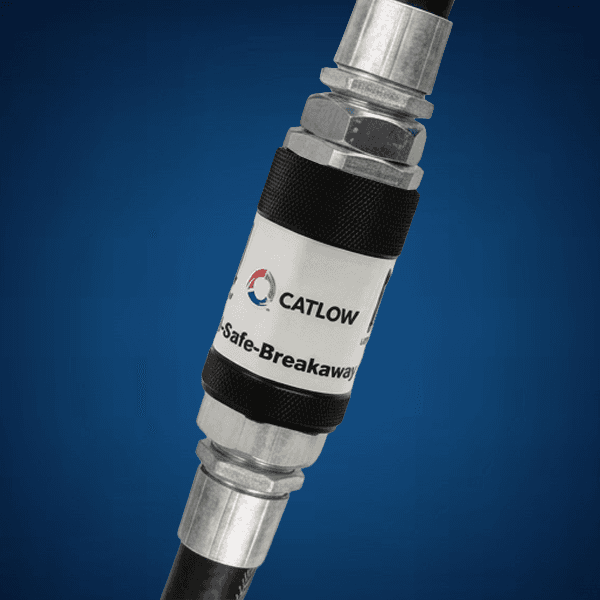

Purpose-built for high-capacity fueling, the C100N mates with standard one-inch hoses and provides minimal flow restriction. Its compact in-line design installs between the primary hose and whip hose.

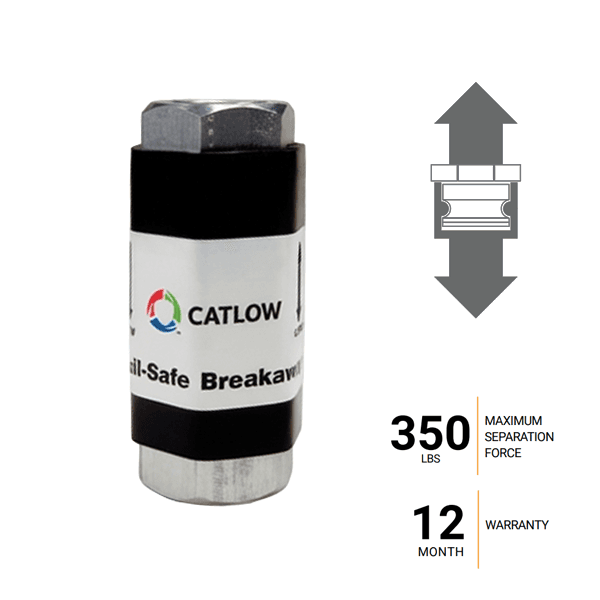

Controlled 350-Pound Separation

A designed maximum separation force of 350 pounds creates a controlled break point, helping prevent excessive hose pull from transferring additional force to the dispenser. The single-use unit must be replaced following separation.

Dual-Sided Fuel Containment

Internal dual poppets close both sides of the breakaway after separation, helping contain fuel within the primary and whip hoses and reduce the potential impact of a drive-off incident.

Certified, Site-Ready Protection

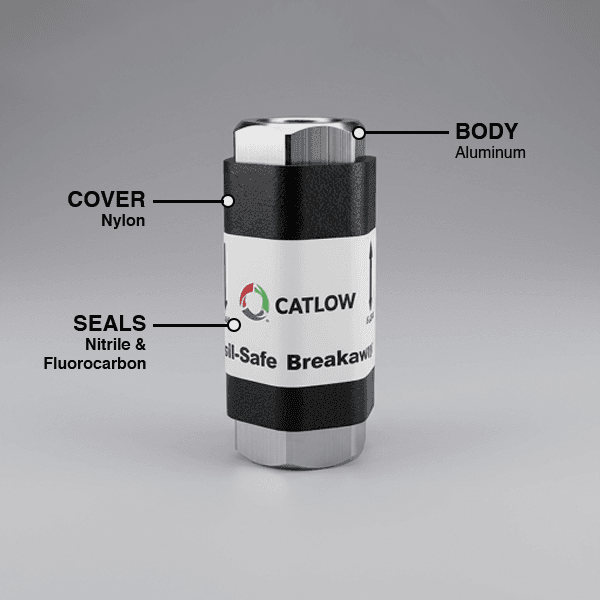

UL/ULC listed for diesel, gasoline, and ethanol blends up to E10, the C100N also meets NFPA 30A codes. A durable protective cover and 12-month warranty provide added confidence in demanding fueling environments.

Dependable by Design

Controlled Separation

Dual-Sided Containment

High-Capacity Flow

Protective Exterior

DESIGNED FOR ONE-INCH SYSTEMS

High Volume Protection

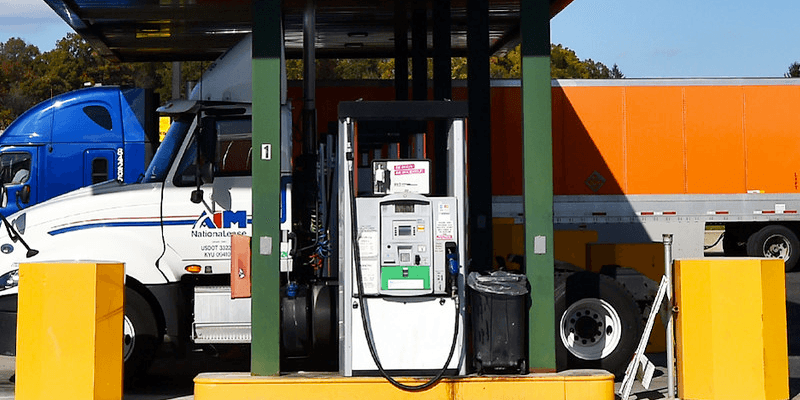

High-volume fueling sites require hanging hardware that can support demanding operating conditions without introducing unnecessary restriction. The C100N uses a true one-inch flow path designed to complement the larger hoses and nozzles commonly found at truck stops, fleet terminals, and commercial diesel facilities.

Its compact in-line configuration adds drive-off protection without complicating the customer’s fueling experience, helping sites balance high-capacity performance with dependable equipment protection.

CONFIDENCE AT THE CRITICAL MOMENT

Shuts the Fuel Path on Both Sides

When the breakaway separates, its internal dual poppets close independently to isolate both sides of the hose assembly. This helps retain fuel within the primary hose and the nozzle-side whip hose, reducing the potential for a drive-off incident to become a larger spill.

The single-use design provides a clear response following separation: remove the affected breakaway from service, inspect the fueling position, and install a replacement before returning the dispenser to operation.

Find the Right Breakaway for Your Site

Connect with Gilbarco Veeder-Root to review your hanging-hardware configuration and identify the right components
