SMARTER FORECOURT PROTECTION
When a Breakaway Separates, CamTwist Is Ready for What Comes Next.
A drive-off can disrupt a fueling position long after the breakaway performs its safety function. CamTwist is designed to make recovery more manageable.
Qualified personnel can twist the unit apart with two wrenches, inspect it for corrosion or wear while it remains installed, and reconnect the two halves with the help of permanent magnets. This service-friendly design provides a practical path back to operation without automatically replacing the entire assembly.
Confidence Through Every Reconnection
Guided Magnetic Reconnection
Permanent magnets help align the two halves and simplify reconnection after inspection or separation.

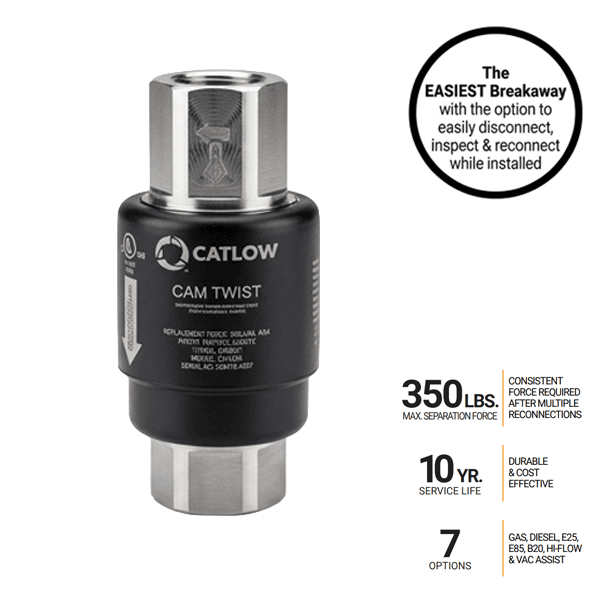

Consistent Separation Force
Designed to maintain consistent separation performance across multiple reconnection events.
Line-Shock Resistance
Engineered to resist hydraulic hammer and the sudden pressure changes that can affect hanging hardware.
Double-Seal Protection
Two O-ring seals help limit leakage and reduce potential environmental impact.
DURABLE BY DESIGN
Built for Years of Forecourt Service

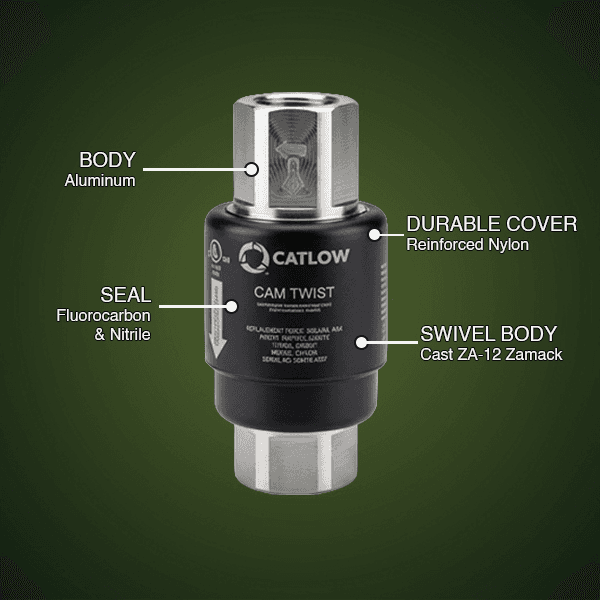

CamTwist uses durable materials throughout the assembly to support dependable performance in demanding fueling environments. An aluminum body, reinforced nylon cover, cast ZA-12 swivel body, and fuel-compatible seals provide a strong foundation for long-term operation. Replacement lower halves, O-ring kits, and compatible whip-hose assemblies are also available to help sites service the equipment without replacing more than necessary.
- Aluminum main body
- Reinforced nylon protective cover
- Cast ZA-12 swivel body
- Fluorocarbon and nitrile seals
- Dual O-ring sealing system
- Replacement lower halves and service kits available
INSPECTION WITHOUT REMOVAL

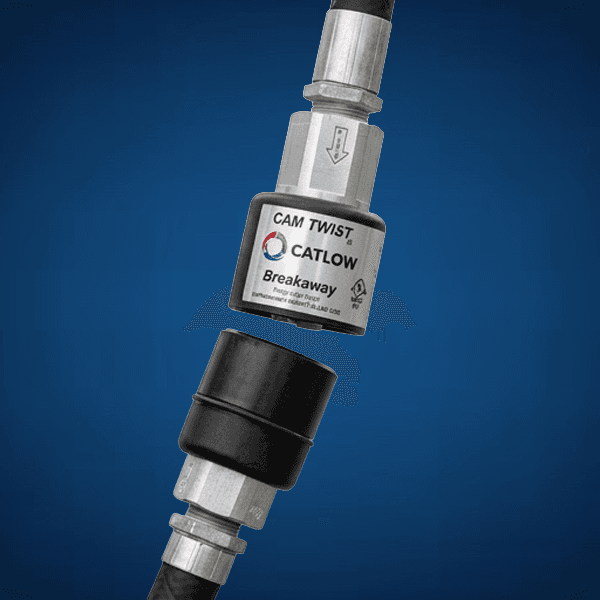

Twist Apart. Inspect. Reconnect.
CamTwist allows the breakaway to be opened for inspection while it remains installed. Using two wrenches, qualified personnel can separate the two halves and check for corrosion, wear, or damage.
When the unit is ready to return to service, the halves are aligned and pressed together. Permanent magnets help guide the components back into position, creating a simpler and more repeatable reconnection process.

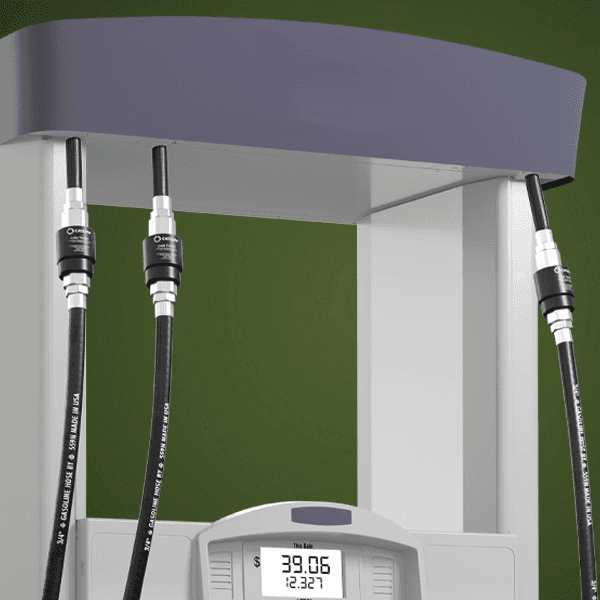

ONE PLATFORM. MULTIPLE APPLICATIONS.
Broad Fueling Compatibility for Your Forecourt
Available for conventional, alternative-fuel, high-flow, and vapor-assist applications. Choose the configuration that matches the site’s fuel compatibility, connection size, and vapor-recovery requirements.
| Model | Configuration |
| CTM75 | 3/4-inch CamTwist magnetic breakaway |
| CTM75-E25B20 | 3/4-inch model for E25 and B20 applications |
| CTM-E85 | 3/4-inch model for E85 applications |
| CTM100 | 1-inch CamTwist magnetic breakaway |
| CTMVA | Vapor-assist CamTwist magnetic breakaway |
| CTMCA | California vapor-assist model; listed as CARB certified on current product pages |
