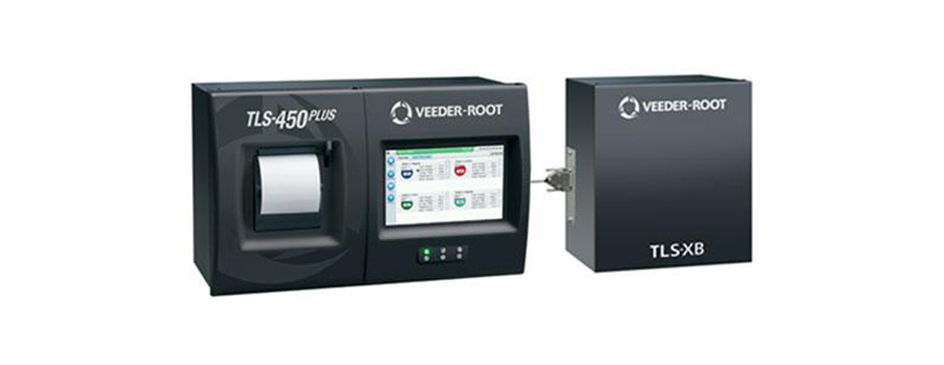

TLS-XB | Expansion Box

TLS-XB

Up to three TLS-XB expansion boxes can be combined with the TLS-450PLUS automatic tank gauge for very large fuel storage facilities or to provide a flexible system solution that grows with your fuel station requirements.

TLS-XB expands the total TLS-450PLUS automatic tank gauge system inputs to 256.

  • Compatible with existing TLS-450 series Interface Modules
  • Four slots per TLS-XB accept both USM (probe / sensor) or USIOM (Relay /Input) modules
  • Daisy chain up to three TLS-XB expansion boxes per console
  • Up to 99 sensors of any one type
  • Up to 32 probes
  • Up to 256 total devices
  • Provides additional Input and Output relay capabilities
  • Various console connection cable lengths for maximum flexibility
  • Temperature Rating:
    • Storage: -40° C to + 75° C
    • Operating: 0° C to +40° C
  • Connecting cable length options (cm): 91, 183, 305, 457 & 762
  • Dimensions (cm): 27.9 High x 20.3 Wide x 12.7 Deep
