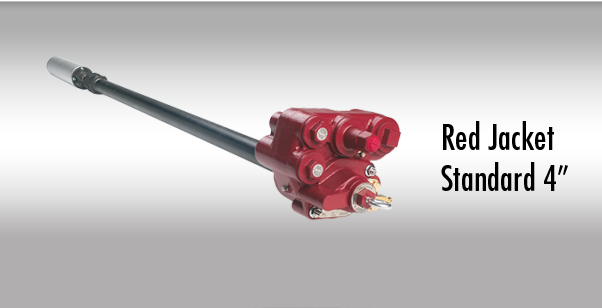

Submersible Turbine Pump - Red Jacket Standard 4" | Gilbarco Veeder-Root

Proud to be Powered by Vontier. Sharing a united vision that is driven by innovation. Find out more

Customer friendly
Lower noise, more pleasant customer experience
Virtually no vapour lock

Lower total cost of ownership
Lower initial costs with less components, less pipe work and simpler installation
Lower cost of ownership with less pumps and motors to maintain

The most efficient way to pump fuel on a forecourt
Maintain optimum flow rates quietly to enhance customer experience, pump fuel greater distances, gain flexibility in station design and eliminate vapour lock conditions.

Performance
Consistent, high flow, enabling greater throughput

Flexible site layout
Theoretically unlimited pipe runs and tank size, enabling tanks to be filled without closing the site

Consistent flowrate
Pump fuel efficiently over greater distances at higher temperatures and altitudes.

Extensive range options
¾, 1½ or 2 HP versions available in single or 3-phase. 50/60 Hz to suit wide range of applications and site configurations as well as 2 horse power

Integrated line leak
Mechanical or electronic line leak controlled by TLS monitoring system with automatic shutdown for maximum environmental protection.

Models 1or 3 phases
50Hz or 60 Hz models
Power 2" horse powers
Line pressure and Vent Port ¼" NPT
Line leak detection Automatic tests for substantial leaks - 11.4 litres per hou
Vacuum siphon port 2 available
Vacuums generated up to 25 Hg
Length Fixed length available
Adjustment Range From 77.5" to 230.5" ( distance from top of lifting screw to inlet)
Model Red Jacket Standard 4" Red Jacket 4"
Compatibility Diesel
Petroleum with up to 20% alcohol
Diesel
100% Gasoline
80% Gasoline with 20% TAME, ETBE or MTBE
0-100% Ethanol
0-100% Methanol
Alternative fuels
Flow rate 150 LPM to 330 LPM 150 LPM - 300 LPM
Monitoring applications Vacuum Sensor siphon Vacuum Sensor siphon
Atmospheres Class 1, group D atmospheres Class 1, group D atmospheres
