CNG Pump | SK700-II CNG Fuel Dispensers

SK700-II CNG Dispensers

CNG is clean, affordable and abundant in nature. As one of the most environmentally friendly fuels available, CNG’s popularity is growing across Europe with the increase in the number of natural gas vehicles.

Gilbarco Veeder-Root’s SK700-II CNG pump offers field proven design. With a breath of installations in the field, the modular SK700-II CNG, part of Gilbarco Veeder-Root’s Alternative Fuels range, is designed to meet the highest safety, reliability and performance demands.

The SK700-II CNG range provide a wide selection of options, which mean that it fits seamlessly with the rest of the systems and solutions on your forecourt. It provides a flexible range of SK700-II CNG configurations, comprising dispensers for standalone use, with single and double hose column. In addition, the SK700-II CNG dispenser can be uniquely combined with other fuel grades, including LPG. Using standard Point of Sale (POS) protocols, it can be combined with other systems on the forecourt and it comes with a wide selection of options, such as an Emergency Shut Down system, knock over protection and internal valve sequencing.

CNG dispensers for both PN250 and PN300 inlet pressure, configurable for car and bus applications, Biogas compatible and with all standard Point of Sale (POS) protocols.

Unique offering

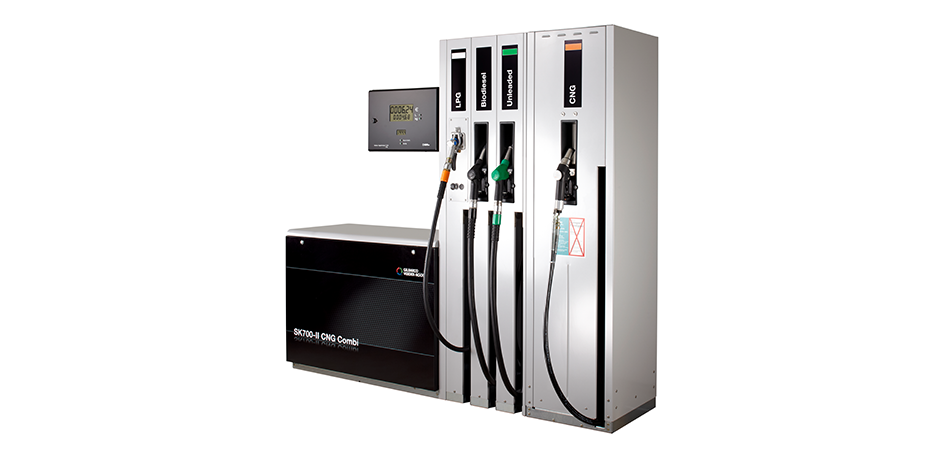

The unique SK700-II CNG Combi allows you to deliver CNG alongside other fuels, including LPG, from the same dispenser.

The SK700-II CNG dispensers are fully approved and designed to exceed safety and environmental standards without compromising on reliability and conformity.

Highest quality construction
Built with the highest quality, zinc coated sheet metal for an improved, rust free look that guarantee longer and damage free life. Stainless steel execution is also available as an option.

Rigorous in house testing
Thorough tests at our manufacturing facility in Germany guarantee highest quality and safety as well as ensuring peace of mind and low lifetime costs.

SK700-II flexibility and end user experience
The SK700-II CNG is one of the many modular designs available with the SK700-II series, so it fits seamlessly with the rest of the systems and solutions on your forecourt



  • Coriolis type mass flow meters
  • 250 bar or 300 bar inlet pressure
  • Temperature compensated filling procedure
  • External and internal sequencing
  • Electronically controlled sequencing
  • Solenoid valves


  • Housing - powder coated steel
  • Hose management – internal with retraction
  • Twin hose line with re-connectable breakaways
  • Refuelling nozzles: NGV 1 and NGV2, TK16, TK17, TK26
  • Refuelling hose: 3/8" (cars), 1/2" (buses)
  • Foundation frame


  • Calculator - Gilbarco Sandpiper II
  • LCD display (back lit)
  • Interfaces - 2-wire, IFSF-LON, ATCL, PUMA
  • Start - Stop button, Dead man push button


  • Knock over protection
  • Leak tightness test at different pressures
  • Remote monitoring interface
  • Housing - stainless steel
  • Emergency Shut Down (ESD) system
  • Emergency Signal
  • E&H meter DIN 25 (for pure bus applications)
  • Mandatory country options
Technical characteristics


  • Ambient temperature range -20°C to +40°C
  • Accuracy +/- 1.5%
  • Refill duration (standard vehicle) ≤ 3 min
  • Power supply: 230V
  • Factory tested
  • EC marked
  • Approvals: ATEX, PED, PTB, G651
  • Country specific weights and measures upon request
